Pre-assembled flush-mounting multiple shut-off domestic water manifold kit

K4.3

AS BEFORE, MORE THAN BEFORE

The revolutionary K4.3 sanitary manifold by TECO is an evolution that surpasses its predecessor, which has been a pioneer in industry standards since 2015!

With these recent improvements, we aim to raise standards further, continuing our tradition of innovation and safety.

Product range

Version with 4+3 Outlets

Version with 5+4 Outlets

Version with up to 7+6 Outlets*

* Expandable by adding FASTEC T or Boost valve.

logo

Specifications

FLUSH-MOUNTING
PRACTICAL TO INSTALL
"SOFT TURN” ANTI-JAMMING TECHNOLOGY
"TOP ENTRY” REMOVABLE BALL
logo

Specifications

FLUSH-MOUNTING
PRACTICAL TO INSTALL
"SOFT TURN” ANTI-JAMMING TECHNOLOGY
"TOP ENTRY” REMOVABLE BALL

PRE-ASSEMBLED


The manifolds are supplied pre-assembled for simple, solid and orderly installation with a significant time benefit.

Technical data

APPLICATIONS

  • For hot and cold drinking water.
  • For cooling and heating water with or without antifreeze.
  • Suitable for installation in masonry and plasterboard constructions (minimum thickness 100 mm).
Technical data
Standard and certificationDIN EN 13828
W570-1
KTW-BWGL
ACS
PZH
Material bodyStamped and sandblasted CW617N brass
Material ballsEngineered polymer
OREPDM
Ball sealsVMQ
ManigliaBlue/Red PA66 (Polyamide)
Sandwich BoxPolyester
PressurePN10 (10 bar)
Temperature+5 °C ÷ +95 °C
FittingsFASTEC®
DVGW Patented

Patented

FEATURES

  • Compact flush-mounting domestic water distribution manifold kit.
  • Shut-off valves on the individual outlets.
  • DN10 "Top Entry” valve with removable ball and "Soft Turn” anti-jamming technology, even after long periods of inactivity without the need for periodic activation.
  • Different configurations up to 7 cold water + 6 hot water outlets.
  • Pre-assembled in a serviceable sandwich box with knockouts on all four sides.
  • Design faceplate with magnetic closure available in a range of finishes.
  • Identification of utilities with stickers to be applied to the control handle or inside the faceplate.
  • Fast system connections FASTEC®.

Discover more

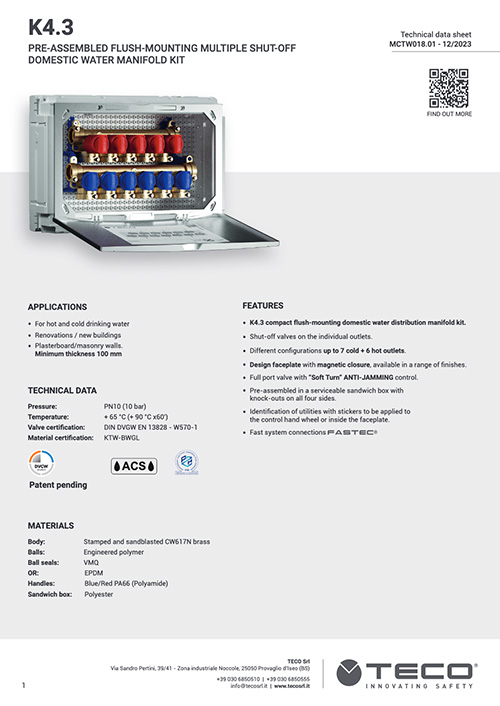

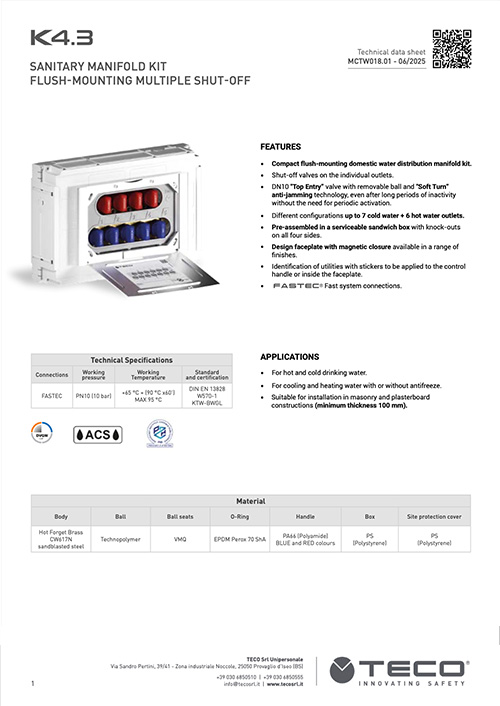

Documentation


Catalogo BIM

Teco offers its product libraries developed on the Autodesk Revit platform, ensuring data compliant with BIM standards.

BIM Catalogue
